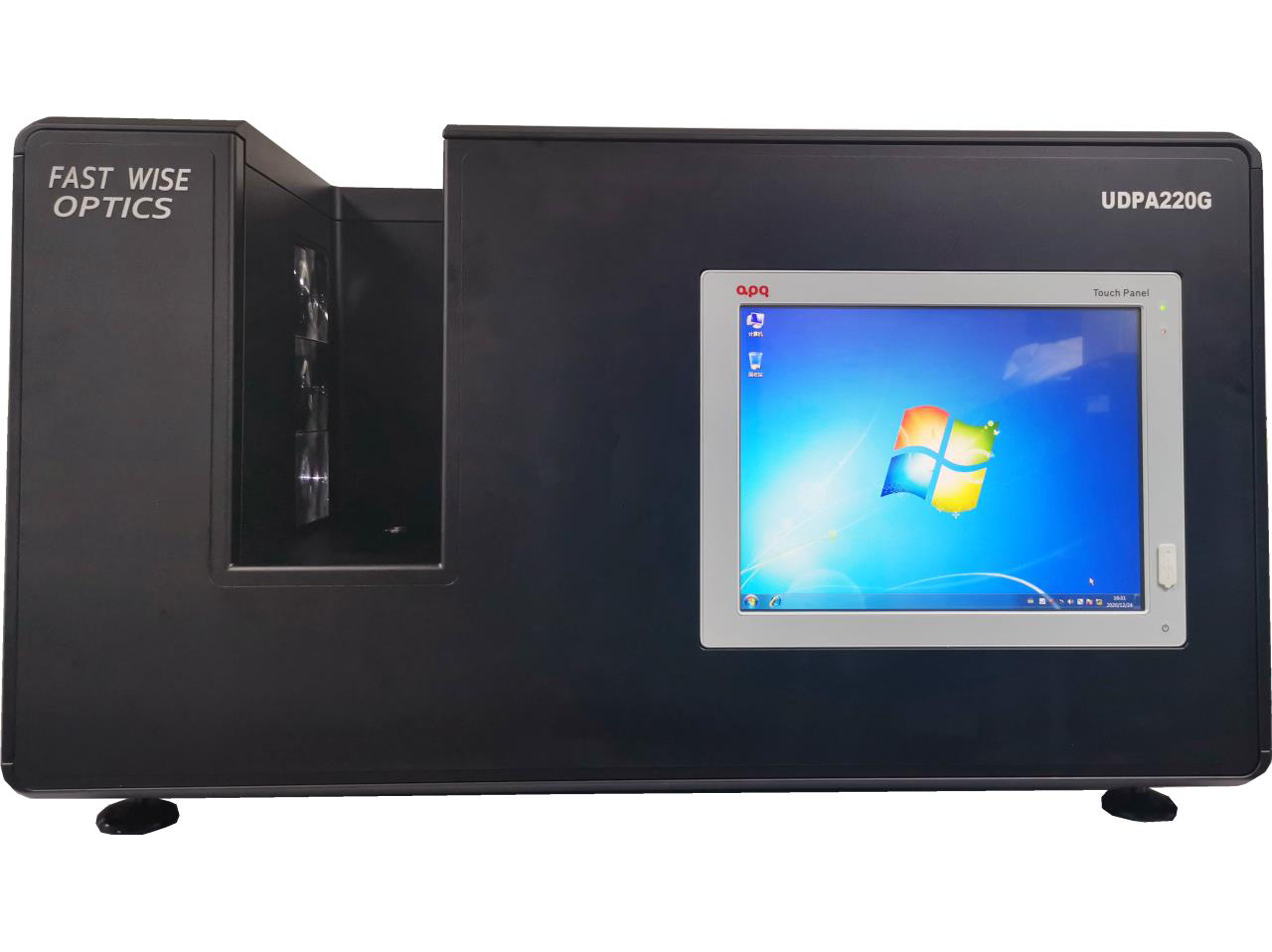

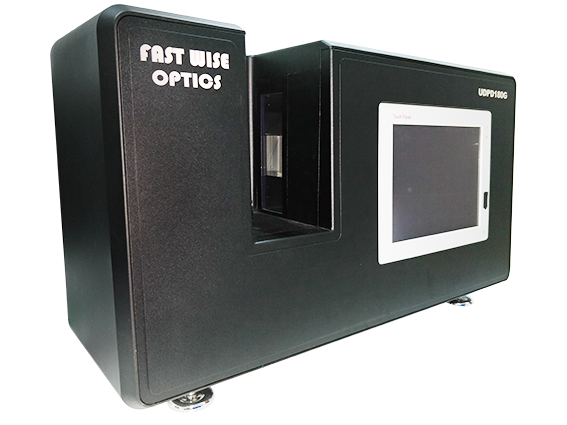

Preform Measuring Instruments

About Our Product:

• The preform measuring instrument is designed with the principle of optical multi-lens refraction segmented imaging, and uses multi-segment parallel light to irradiate the bottle body to obtain the entire preform profile image.
• The preform clamping head can be conveniently replaced according to different bottle openings; the preform clamping head rotates through the servo motor to locate the inherent feature points of the preforms, and achieve standardized measurement of all preforms.
• With remote control function, it is convenient for instrument maintenance; the measurement data is displayed in a tabular form, avoiding artificial data copying, and one-click data export or printing.
• The system has measurement modular management, and improves the measurement accuracy to 1/3~1/5 pixel (0.005mm) through the sub-pixel image processing technology of implantation technology.
• The system adopts a modular design, which makes the installation more standard, the use more convenient, and the measurement accuracy more stable.
• The unique light source design can automatically filter the impact of shrinkage and texture caused by preform injection, and accurately collect preform characters.
• The software system has a variety of standard bottle mouth measurement modules built in, including 1810, 1881, 29/25, 30/25 measurement modules; the system intelligently selects different measurement modules by automatically identifying the type of preform.
• The measurement software can set up a variety of measurement modules to meet the daily measurement requirements, weekly measurement requirements, and monthly measurement requirements, thereby improving the detection efficiency; the system sets the operator login interface, and the measurement of each data ensures traceable data.
• The system has character learning and recognition functions. Based on character pre-learning, it can quickly identify the cavity number on the preform and record it in the data sheet.
• With the establishment of local area network, it is more convenient to browse data in the intranet
• With Internet protocol (mqtt), it can support subsequent paid upgrade application services (Internet services), including detection data collection, data graph presentation, production cavity exceeding standard statistics and prompting users to pay attention to cavity wear, customized QC group management , Support cloud data services for other instruments in the laboratory, etc.
• Support paid cloud server access or user server access management
• Internet services also include system backup, data backup, image collection of abnormal products during instrument measurement, fault image collection during instrument measurement, software upgrade, etc.
